DiagramModerate2 marks
4(i)
Copy the diagram to complete the path of the ray which you have named in (a) till it comes out of the prism.
Topic: Ray path through a prism
Question wording verified against source paper
Answer

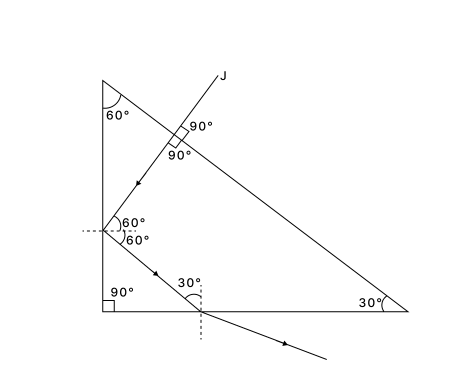

Solution diagram
Exam answer
Ray J undergoes total internal reflection at the vertical face and then emerges normally through the horizontal base.
Explanation
Complete the ray path with the reflected ray and the normal emergence as in the source diagram.
More from Refraction of Light at Plane Surfaces
From the figure given below, the refractive index of medium B with respect to medium A (ₐμᵦ) is:
(a) sin 45° / sin 30°
(b) sin 30° / sin 45°
(c) sin 45° / sin 60°
(d) sin 60° / sin 45°2026When a ray of light passes from a denser to a rarer medium, its wavelength ............... [decreases / increases].2026the angle of incidence is maximum.2026the angle of incidence is minimum.2026the angle of incidence is equal to the angle of emergence.2026What is the product of the ratio
sin i / sin r
at the first surface and at the second surface?2026
