DiagramModerate2 marks
5(iii)
A monochromatic ray of light is incident on an equilateral prism placed at minimum deviation position with an angle of incidence 45° as shown in the diagram.
Copy the diagram and complete the path of the ray PQ.
Topic: Minimum deviation in a prism
Question wording verified against source paper
Answer

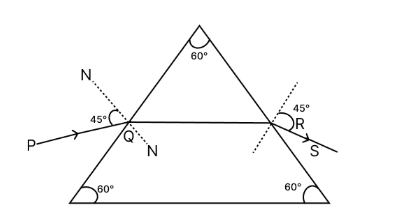

Solution diagram
Exam answer
Draw a symmetrical path through the prism: the ray bends towards the normal at the first face, travels parallel to the base at minimum deviation, and emerges with angle of emergence 45°.
Explanation
At minimum deviation, i = e and r₁ = r₂ = A/2 = 30°.
