DiagramModerate2 marks
4(iii)
The diagram below shows two parallel rays A (Orange) & B (Blue) incident from air, on air-glass boundary.
Copy and complete the path of the rays A and B.
Topic: Refraction of colours
Question wording verified against source paper
Answer

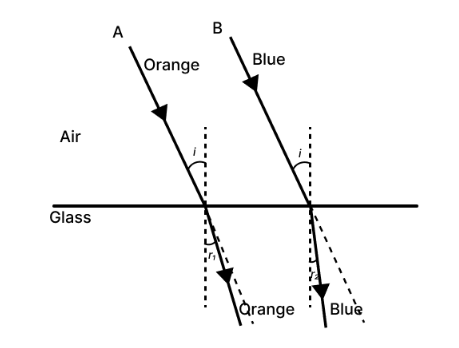

Solution diagram
Exam answer
Draw both rays bending towards the normal in glass, with the blue ray bending more than the orange ray.
Explanation
Blue light has a higher refractive index in glass.
