DiagramModerate2 marks
A ray of light falls normally on a rectangular glass slab. Draw a ray diagram showing the path of the ray till it emerges out of the slab.
Topic: Refraction / total internal reflection
Previous-year question practice database
Answer
Solution diagram
Exam answer

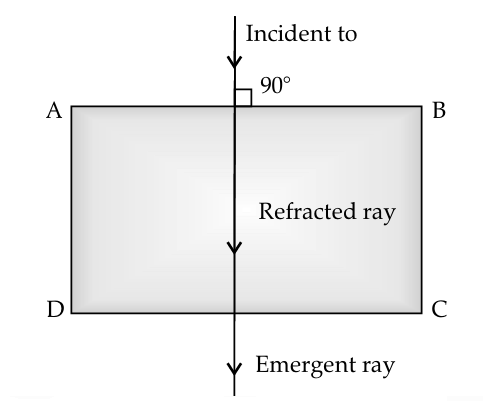

Draw a straight undeviated ray through the slab along the normal.
Explanation
At normal incidence i = r = 0°.
More from Refraction of Light at Plane Surfaces
From the figure given below, the refractive index of medium B with respect to medium A (ₐμᵦ) is:
(a) sin 45° / sin 30°
(b) sin 30° / sin 45°
(c) sin 45° / sin 60°
(d) sin 60° / sin 45°2026When a ray of light passes from a denser to a rarer medium, its wavelength ............... [decreases / increases].2026the angle of incidence is maximum.2026the angle of incidence is minimum.2026the angle of incidence is equal to the angle of emergence.2026What is the product of the ratio
sin i / sin r
at the first surface and at the second surface?2026
