DiagramModerate2 marks
The diagram below shows a light source P embedded in a rectangular glass block ABCD of critical angle 42°. Complete the path of the ray PQ till it emerges out of the block. [Write necessary angles.]
Topic: Refraction / total internal reflection
Previous-year question practice database
Answer
Solution diagram
Exam answer

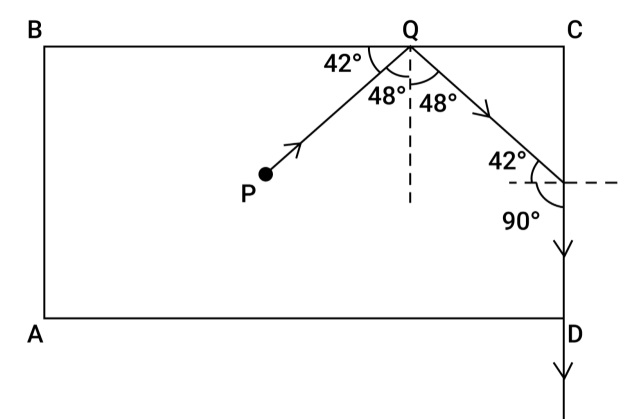

Complete the path using refraction and total internal reflection where the internal incidence exceeds 42°, marking the relevant angles.
More from Refraction of Light at Plane Surfaces
From the figure given below, the refractive index of medium B with respect to medium A (ₐμᵦ) is:
(a) sin 45° / sin 30°
(b) sin 30° / sin 45°
(c) sin 45° / sin 60°
(d) sin 60° / sin 45°2026When a ray of light passes from a denser to a rarer medium, its wavelength ............... [decreases / increases].2026the angle of incidence is maximum.2026the angle of incidence is minimum.2026the angle of incidence is equal to the angle of emergence.2026What is the product of the ratio
sin i / sin r
at the first surface and at the second surface?2026
