DiagramModerate2 marks
7(b)
A ray of light travels from water to air as shown in the diagram given below :
Copy the diagram and complete the path of the ray. Given the critical angle for water is 48°.
Topic: Refraction / total internal reflection
Previous-year question practice database
Answer

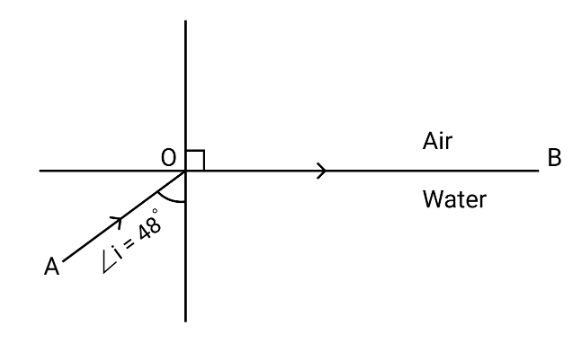

Solution diagram
Exam answer
Complete the ray according to refraction/TIR at the water-air boundary using critical angle 48°.
More from Refraction of Light at Plane Surfaces
From the figure given below, the refractive index of medium B with respect to medium A (ₐμᵦ) is:
(a) sin 45° / sin 30°
(b) sin 30° / sin 45°
(c) sin 45° / sin 60°
(d) sin 60° / sin 45°2026When a ray of light passes from a denser to a rarer medium, its wavelength ............... [decreases / increases].2026the angle of incidence is maximum.2026the angle of incidence is minimum.2026the angle of incidence is equal to the angle of emergence.2026What is the product of the ratio
sin i / sin r
at the first surface and at the second surface?2026
