ICSE Question Bank

Examined in

10 of 11 papers

Appears almost every year — treat as core

Typically worth

7.1 marks

Average per paper it appears in · 71 marks in total

Usual form

Short answer

48% of this chapter's 56 questions

Needs a diagram

38%

21 questions carry a figure — practise drawing them

Question-type distribution

Short answer27
Numerical8
Diagram7
MCQ7
Reasoning5
Definition1
Identification1

Most frequent topics

Machines, levers and pulleys 33Mechanical advantage 2Block and tackle pulley system 2Classes of levers 2Single movable pulley 1Ideal machine 1Non-uniform metre rule 1Principle of moments 1

Print:Questions only Questions + answers Answers only

Print chapter question bank

Showing 6 of 56 matching questions (71 marks).

6 questions

DefinitionEasy2 marks

With reference to the terms Mechanical Advantage, Velocity Ratio and efficiency of a machine, name and define the term that will not change for a machine of a given design.

5(b)

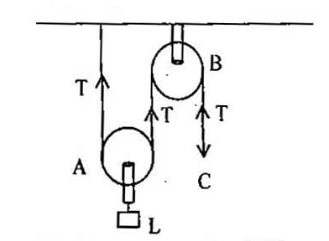

From the diagram given below, answer the questions that follow:

5(b)(i)2016

Short answerEasy1 mark

What kind of pulleys are A and B?

5(b)(ii)2016

Short answerEasy1 mark

State the purpose of pulley B.

5(b)(iii)2016

Short answerEasy1 mark

What effort has to be applied at C to just raise the load L = 20 kgf? [3] (Neglect the weight of pulley A and friction).

5(c)(i)2016

Short answerEasy3 marks

An effort is applied on the bigger wheel of a gear having 32 teeth. It is used to turn a wheel of 8 teeth. Where is it used?

5(c)(ii)2016

NumericalModerate1 mark

A pulley system has three pulleys. A load of 120 N is overcome by applying an effort of 50 N. Calculate the Mechanical Advantage and Efficiency of this system.
