ICSE Question Bank

Tangents and Intersecting Chords

Appeared in 9 of the 11 available papers.

Examined in
9 of 11 papers

Appears in most years

Typically worth
5.2 marks

Average per paper it appears in · 47 marks in total

Usual form
Numerical

80% of this chapter's 35 questions

Needs a diagram
86%

30 questions carry a figure — practise drawing them

Question-type distribution

  • Numerical28
  • MCQ3
  • Construction2
  • Proof2

Most frequent topics

Tangents / intersecting chords 32Tangents / chords 3
Print:Questions onlyQuestions + answersAnswers only
Print chapter question bank

Showing 25 of 35 matching questions (47 marks).

25 questions

1

Choose the correct answers to the questions from the given options. (Do not copy the questions, write the correct answers only.)

9(iii)

X, Y, Z and C are the points on the circumference of a circle with centre O. AB is a tangent to the circle at X and ZY = XY. Given ∠OBX = 32° and ∠AXZ = 66°. Find:

Figure for this question
10(ii)

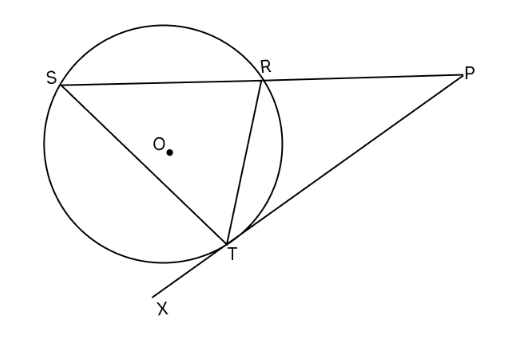

In the given diagram O is the centre of the circle. Chord SR produced meets the tangent XTP at P.

Figure for this question
1

Choose the correct answers to the questions from the given options. (Do not copy the questions, write the correct answers only.)

3(ii)

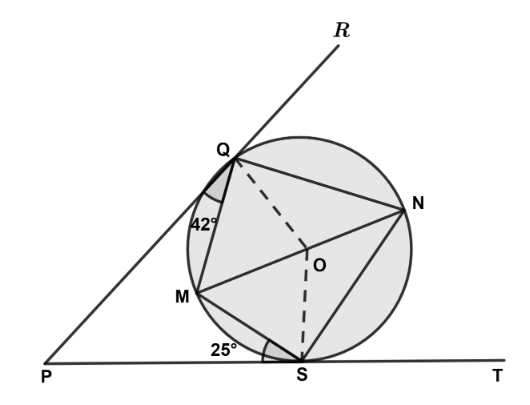

In the given diagram, O is the centre of the circle. PR and PT are two tangents drawn from the external point P and touching the circle at Q and S respectively. MN is a diameter of the circle. Given ∠PQM = 42° and ∠PSM = 25°. Find :

Figure for this question
7(i)

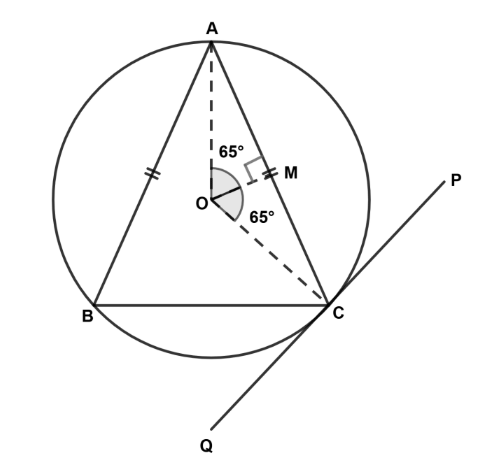

In the given diagram, an isosceles ∆ABC is inscribed in a circle with centre O. PQ is a tangent to the circle at C. OM is perpendicular to chord AC and ∠COM = 65°. Find :

Figure for this question
1

Choose the correct answers to the questions from the given options. (Do not copy the questions, write the correct answers only.)

2(iii)

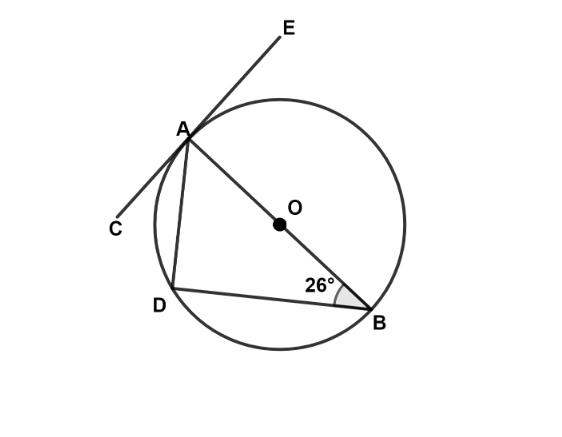

In the given figure O, is the centre of the circle. CE is a tangent to the circle at A. If ∠ABD = 26° , then find:

Figure for this question
4(iii)

In the given figure, O is the center of the circle. PQ is a tangent to the circle at T. Chord AB produced meets the tangent at P. AB = 9 cm, BP = 16 cm, ∠PTB = 50°, ∠OBA = 45°. Find :
