DiagramModerate3 marks
An object is placed at 2F position of a convex lens. Draw a ray diagram showing the formation of the image.
Topic: Ray diagram for object at 2F
Question wording verified against source paper
Answer

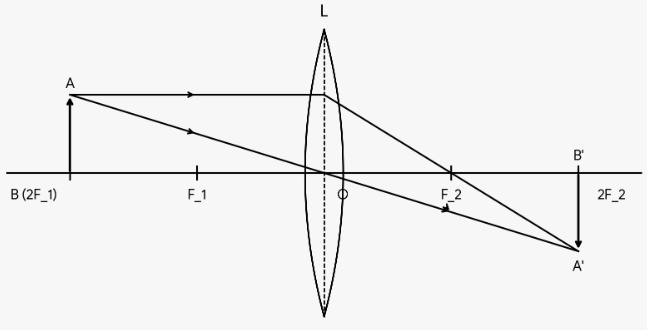

Solution diagram
Exam answer
A real, inverted image of the same size is formed at 2F₂.
Explanation
Draw one ray parallel to the principal axis refracting through F₂ and another through the optical centre undeviated.
