DiagramModerate2 marks
6(i)
A block and tackle system of pulleys has velocity ratio 4.
Draw a labelled diagram of the system indicating clearly, the direction of the load and the effort.
Topic: Block and tackle pulley system
Question wording verified against source paper
Answer

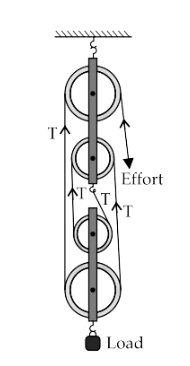

Solution diagram
Exam answer
Draw a block-and-tackle system with four supporting rope segments, clearly labelling load and effort.
Explanation
For an ideal system, VR equals the number of supporting strands.
