DiagramModerate2 marks
8(b)
The diagram below shows a dual control switch circuit connected to a bulb.
Copy the diagram and complete it so that the bulb is switched ON.
Topic: Domestic electricity and safety
Previous-year question practice database
Answer

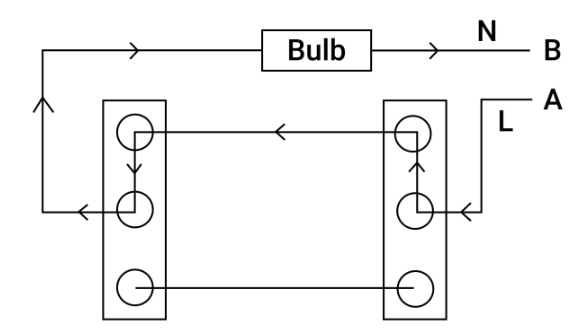

Solution diagram
Exam answer
Complete the two-way switch connections so a continuous path exists from live wire through the switches and bulb to neutral.
