DiagramModerate1 mark
5(c)
The diagram below shows a pulley arrangement :
Copy the diagram and mark the direction of tension on each strand of the string.
Topic: Machines, levers and pulleys
Previous-year question practice database
Answer
Solution diagram
Exam answer

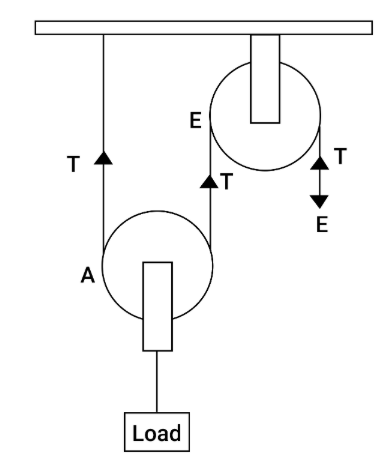

Mark the same tension T in every segment of the ideal rope, with tension directions along the rope away from each pulley/load.
More from Machines
The Velocity Ratio (VR) of a block and tackle system of two pulleys with the effort in the upward direction is:
(a) 1
(b) 2
(c) 3
(d) 42026In which case (1st or 2nd) was the potato closer to her hand applying the effort? (Assume normal reaction of the surface of the potato is same in both cases)2026Give a reason for your answer in (a) above.2026To which class of lever does a pair of scissors belong?2026the efforts in the two cases.2026the potential energy gained by the loads in the two cases.2026
