ConstructionModerate1.5 marks
3(iii)
Use ruler and compass for the following construction:
construct the circumcircle of ΔABC.
Topic: Geometrical construction
Previous-year question practice database
Answer

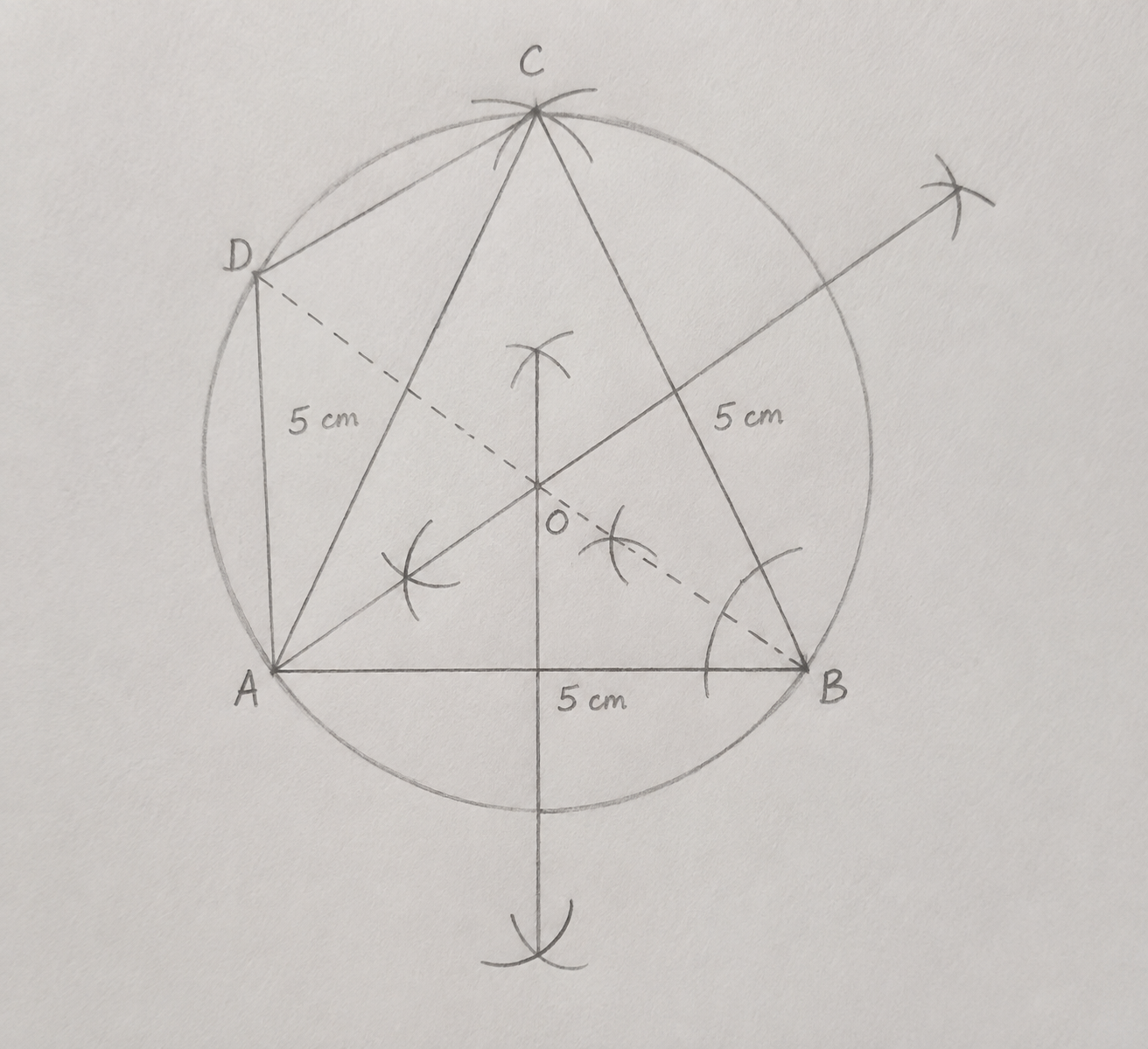

Solution diagram
Exam answer
Construct the circumcircle of ΔABC.
Explanation
Construct perpendicular bisectors of two sides; intersection O is circumcentre. Draw circle centre O through A.
